Pulse Libraries For FrontEnd

Include Pulse libraries

<!-- neomia Pulse Libs -->
<script type="application/javascript" src="pulse-rec.js"></script>
<script type="application/javascript" src="pulse-biometricpass.js"></script>
<script type="application/javascript" src="pulse-animation.js"></script>

Pulse Rec

Capture the behavioral pattern for Pulse authentication.

You can download the library here : pulse-rec.min.js

const pulseRec = PulseRec.getInstance();

pulseRec.startTrackingKeyboardElements(["input-id"]);

pulseRec.startTrackingView();
pulseRec.startTrackingMouse();

pulseRec.getPattern({
    patternType: ['d', 'k', 'm', 'v'],
    elementIds: ["input-id"],
    hideChars: true,
    syncWithField: true,
    hideTimestamps: ['k', 'm', 'v']
});

Pulse Animation

You can visualize your keystroke dynamics, or create a loading animation with Pulse animation.

You can download the library here : pulse-animation.min.js

const pulseAnimationConfigLoading = {
    textElementId: null,//"user_email",
    canvasElementId: "pulse-animation-canvas-loading",
    shape: "pulseLogo",
    animWidth: 300,
    animHeight: 100, //null,
    numPoints: 25,
    lineWidth: 1.,
    border: null,//"1px solid green",//null,
    borderRadius: "7px",//null, //"0 3px 0 0",
    colors: ["#cc0000", "#cc0000", "#d24000", "#006400", "#006400"],
    backgroundColor: null, //"blue",
    removeElementBackgroundImages: true, // removes the background images on password field when field is not validated
    fadeDelayMS: -1, // -1 (negative values) for no fade
    fadeRate: 0.1,
    fps: 15,
    displayInit: "shape"  // "none", "shape", "line"
};

const pulseAnimationLoading = new PulseAnimation(pulseAnimationConfigLoading);


// Start animaion
pulseAnimationLoading.startAnimation("fill", "pulseLogo");

// Stop animation
pulseAnimationLoading.stopAnimation();

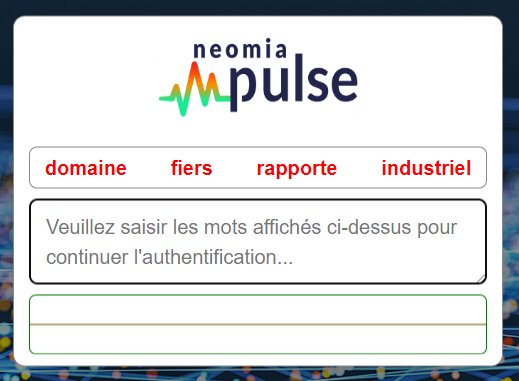

Pulse BiometricPass

This tool collects the keystroke dynamics of typing with random words. A pattern will be generated for authentication on neomia Pulse.

You can download the library here : pulse-biometricpass.min.js

Remarks

Pulse BiometricPass use automatically pulse-rec.js and pulse-animation.js for you, but you need to load these libraries.

Modal mode

If you wish to use the component in popup mode, add the code below :

JS code

const biometricPass = new PulseBiometricPass(); // Init the component
biometricPass.show(); // Display the component

/* Get the pattern when words are entered */
biometricPass.addEventListener('complete', (pattern) => {
    console.log(pattern); // Your Pulse pattern
    /* You can perform the 'user verify' procedure  */
});

On page

If you want to use the component on your web page, add the code below :

HTML code

Indicate where the component is to be displayed.

<div id="neomia-pulse-modal-id"></div>

JS code

Setting up your component.

const biometricPass = new PulseBiometricPass(); // Init the component
biometricPass.bind(); // Disable popup mode. Adds component on your web page.
// biometricPass.hideLogo(); // No neomia Pulse logo
// biometricPass.borderless(); // No border around the component
biometricPass.setWidth(550); // Force the width size
biometricPass.show(); // Display the component

/* Get the pattern when words are entered */
biometricPass.addEventListener('complete', (pattern)=>{
    console.log(pattern); // Your Pulse pattern
    /* You can perform the 'user verify' procedure  */
});

New words sequence

biometricPass.refresh(); // update words
